Welcome to the DIY Watch Assembly Instruction
In the next two hours, you will dive into the world of watchmaking.
Please relax, take your time, and enjoy the fun of the craft of watchmaking!
Chronograph Assembly Instructions

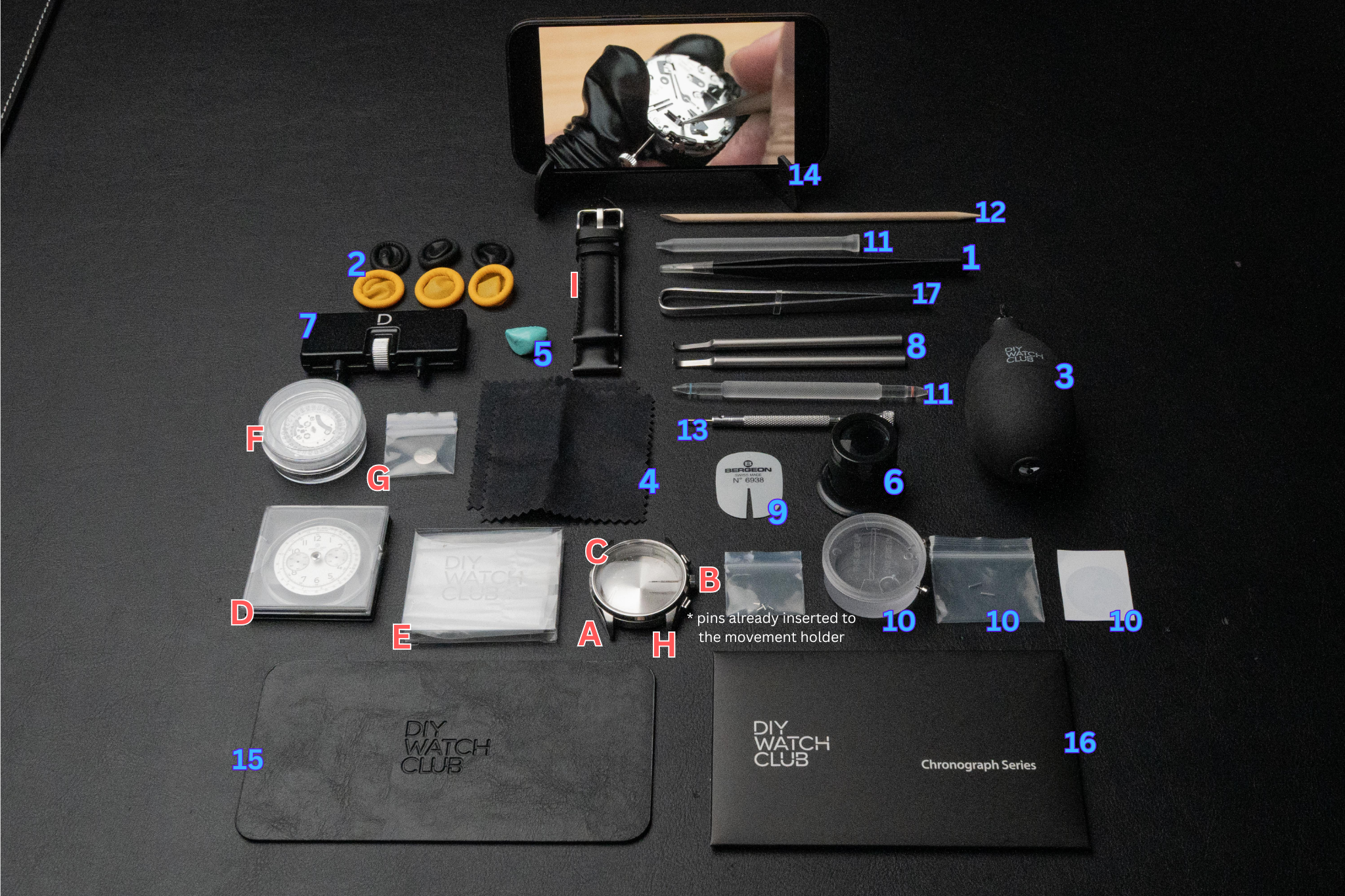

Before starting, you can familiarize yourself with the tools and parts needed:
Parts:
watch case
bezel insert
crown and stem
movement holder
chapter ring
dial
hands
movement
gasket
strap
Metal contacts for chronograph buttons
quick release spring bars (optional depending on strap type)
Tools:
tweezers
finger cots
hand pump
suede
Rodico
loupe
case opener
hand removal tools
protective film for hand removal
hand setting tool
peg wood
screwdriver
1: Dial and Movement Assembly Installation
1a. Opening the package and wearing finger cots
Introduction to what’s inside the package, and how to wear finger cots to protect the movement.
Content:
introduce package content
how to wear finger cots, and why
1b. Preparing case parts
Your watch case comes pre-assembled in order to keep it clean. This part will show you the individual parts of a case.
Content:
How to open case back
How to place parts
1c. Precautions during movement installation
The movement is the soul of a watch. It takes great care to install it. In this part, we’ll show you what to be mindful of when you install the movement.
Content:
Introduction of a meca-quartz movement
Areas you should not touch
Areas you can apply pressure on
1d. Installation and removal of stem and crown
Watch assembly and basic watch repair require you to install and remove the stem and crown. You will need to do this multiple times throughout this workshop.
Content:
Function of crown
How to remove and install crown
1e. Installing dial
In this part, we will install the dial. After assembling them, we will proceed to the next part, where we install the watch hands.
Content:
Install dial onto the movement
Optional: How to remove the dial
To remove the dial, simply use a screw driver, and insert it in between the dial and the movement or movement holder. Inserting the screw driver next to the dial feet will give you a better control.
1f. Installing movement holder
In this part, we will install the movement holder onto the movement assembly.
Content:
How to install the movement holder
2: Hand Installation and Adjustment
If this is your first time installing hands, it might be quite difficult. You can take a break first before continuing.
3: Installing Case and Other Parts
3a. Cleaning parts and movement assembly
Instruction on how to clean parts and movement assembly
Content:
Using hand pump
Using rodico
Using peg wood
3b. Cleaning watch case
In this part, we will clean the watch case
Content:
Avoid touching the inside of case
Using rodico, peg wood, and suede for cleaning
3c. Installing watch case
In this part, we will install the movement assembly with hands into the case
Content:
Installing assembly
Aligning movement and stem
Installing case back
If you need to reinstall any of the components, you can refer to this:
FINAL CHECK!
Check for proper watch functions by winding and setting time. When hands are being turned, check if they come into contact with other hands or parts.
Check for dust or dirt on crystal, hands, dial or other parts. If needed, you can remove the case to clean the inside.
Check if the case back is securely fastened. If not, water resistance capability of the watch might be compromised.
